Steal CPU Full Analysis: Hypervisor CPU Sharing Structure and Practical Mitigation

1. What Is Steal CPU

There are cases where an application inside a virtual machine becomes slow even though CPU usage appears low.
In most of these situations, the root cause is Steal CPU occurring at the hypervisor level.

Steal CPU refers to the following condition:

A VM is fully ready to run at this moment,
but the hypervisor allocates CPU time to other VMs first,
causing the VM to wait instead of executing.

When CPU resources are insufficient, a VM stays in the “Runnable” state and the accumulated delay becomes Steal CPU.

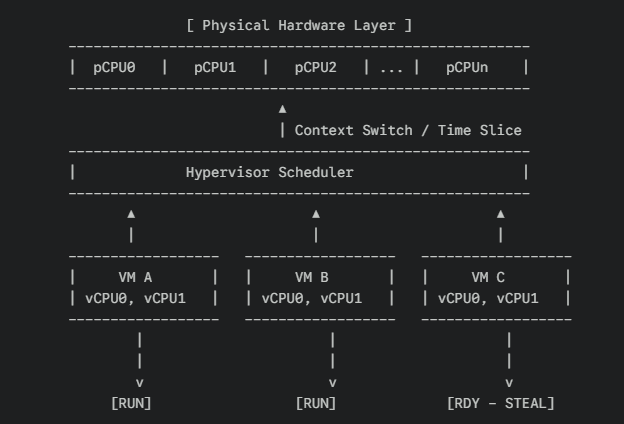

2. Hypervisor CPU Sharing Structure

A vCPU is not a physical CPU.

The hypervisor assigns physical CPU (pCPU) time slices to vCPUs.

Even when a VM enters a Runnable (RDY) state, it can still be delayed if the pCPUs are busy.

This delayed period is Steal CPU.

3. vCPU Concept Overview

VM Environment

A vCPU is not a copy of a physical core; it is a logical CPU slot created by the hypervisor.
The number of vCPUs can exceed the number of physical cores, and the higher this ratio becomes, the more likely Steal CPU will occur.

Container Environment

Containers do not have the concept of vCPUs.
CPU constraints for containers are applied through cgroups distributing time on pCPUs (or vCPUs if running on a VM).

Here is a common point of confusion in real-world environments:

• Throttle: The VM receives CPU, but the container’s CPU limit prevents execution.
• Steal: The VM itself is not receiving CPU time because the hypervisor prioritizes other VMs.

These are completely different phenomena.

When containers run on top of VMs in cloud environments (EKS, GKE, etc.),
container throttling and VM-level Steal can overlap and cause mixed symptoms.
They must be diagnosed separately.

Bare Metal Environment

Only physical CPUs and threads exist, so the term vCPU does not apply.

4. What Steal CPU Indicates in Terms of Performance

Inside a VM, CPU idle may appear available while the application still slows down.
This is the typical symptom caused by Steal CPU.

5. How Steal Occurs (Timeline)

RDY (Runnable) indicates that the VM is actively requesting CPU time.

If pCPUs are occupied by other VMs (A and B), VM3 continues to wait.

This period—“ready to run but not running”—is Steal CPU.

6. Why Steal CPU Frequently Occurs in AWS and Cloud Environments

AWS fundamentally operates as a multi-tenant environment.
A VM can be affected by the workload of other customer VMs placed on the same physical host.

Common Causes in Cloud Environments

Host Contention
Occurs when multiple VMs placed on the same host enter high load simultaneously.

CPU Credit Mechanics on T Series Instances
In Standard Mode, Steal CPU may increase when credits run out.
In Unlimited Mode, performance is maintained but additional charges apply.

Spot Instance Competition

Low-cost instance families with high oversubscription ratios

Basic Actions When Steal Is High on AWS

Stop → Start instead of reboot to move the instance to another host.
Check credits if using burstable (T series) instances.
Move to Compute Optimized families (C5/C6/C7).
Consider Dedicated Instances or Dedicated Hosts.

7. Causes of Steal in On-Prem KVM / VMware / Proxmox Environments

All virtualization platforms are affected by vCPU oversubscription,
but VMware represents Steal as CPU Ready Time instead.
Guest OS shows Steal, while vSphere shows Ready.

Major Causes

• Excessive vCPU oversubscription
• Noisy-neighbor VMs
• Ignoring NUMA policies
• CPU pinning conflicts
• Hypervisor internal process load

Immediate Mitigation

• Migrate the problematic VM to another host
• Reduce vCPU allocation or increase pCPUs
• Re-align NUMA configuration
• Remove or modify CPU pinning
• Isolate high-load VMs

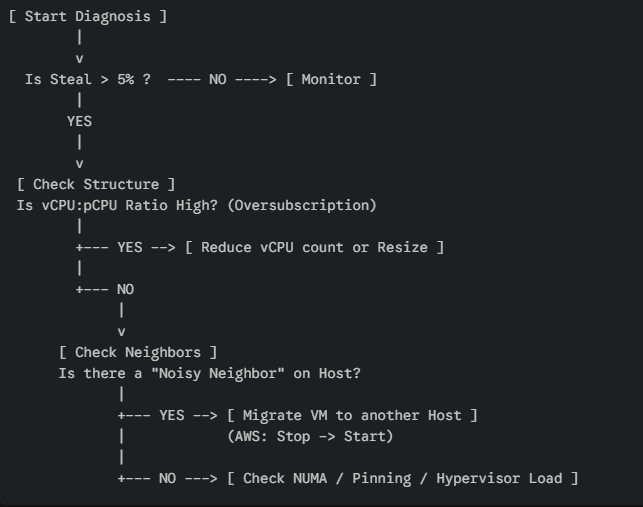

8. Steal CPU Troubleshooting Flow

9. Conclusion

Steal CPU is not just a number; it is a warning generated by the hypervisor.
It indicates insufficient physical CPU capacity, an incorrect vCPU layout,
or resource contention from other VMs on the same host.

Understanding container-level CPU throttling, AWS T series operating modes,
and VMware Ready Time helps evaluate Steal CPU more accurately.

The core principles behind Steal CPU are simple,
but in environments where hypervisors, VMs, containers, and cloud infrastructure are layered together,
understanding this structure is essential for resolving performance issues.
