Building a Suricata NAT Instance-Based IPS/IDS Lab (Part 4): Suricata IPS Practice – Verifying Detection and Blocking with Real Attack Traffic

Objective

In this section, the following workflow is verified directly using real network traffic.

• Attack requests originating from a local workstation
• Suricata detects the attacks and generates alert events
• When the same rules are switched to drop mode, actual traffic blocking is confirmed (IPS verification)

This lab demonstrates not just that rules exist, but that they actively control real network flows.

---

Overall Lab Flow

• Configure a private web server dedicated to attack testing
• Review attack concepts and prepare vulnerable endpoints
• Generate attacks from a local workstation
• Verify Suricata alert logs
• Switch rules to drop mode
• Retry the same attacks and confirm blocking

---

1. Private Web Server for Attack Testing

Prerequisites

• The web server is located in a private subnet
• No direct public access
• External communication is possible only through the NAT Instance
• SSH access method: choose one of the following
  • NAT Instance (jump host)
  • AWS Systems Manager (SSM)
  • Bastion host

---

2. Apache + PHP Installation (Lightweight and Suitable for Testing)

# apt update
# apt -y install apache2 php libapache2-mod-php curl
# systemctl enable apache2
# systemctl start apache2

Verification:

# systemctl status apache2

---

3. Test Web Root Setup

# cd /var/www/html
# rm -f index.html

3.1 Baseline Page for Normal Traffic

# tee /var/www/html/index.php <<'EOF'
<?php
echo "<h1>Suricata IPS/IDS Test Web Server</h1>";
echo "<p>Client IP: " . $_SERVER['REMOTE_ADDR'] . "</p>";
echo "<p>User-Agent: " . $_SERVER['HTTP_USER_AGENT'] . "</p>";
?>
EOF

This page serves as the baseline for normal HTTP traffic.
Accessing this endpoint should not generate any alerts.

---

4. Vulnerable Endpoints for Attack Testing

⚠️ Warning: The following code is intentionally vulnerable.
It must never be deployed in a production environment.

---

4.1 SQL Injection Test

Concept

SQL Injection forces user input to be interpreted as part of an SQL statement.

Suricata detects patterns such as:

• UNION SELECT
• SQL comment patterns

Vulnerable Page

# tee /var/www/html/sqli.php <<'EOF'
<?php
$id = $_GET['id'] ?? '1';
$query = "SELECT * FROM users WHERE id = $id";
echo "Query: $query";
?>
EOF

---

4.2 XSS (Cross-Site Scripting)

Concept

XSS causes user input to be rendered directly as HTML or JavaScript.

Suricata actively monitors and detects patterns such as:

• <script>
• alert(
• Event handlers (onerror=, onload=)

Vulnerable Page

# tee /var/www/html/xss.php <<'EOF'
<?php
echo "Input: " . ($_GET['q'] ?? '');
?>
EOF

---

4.3 Command Injection

Concept

Command Injection executes OS-level commands through web requests.

From an IPS perspective, this traffic requires immediate blocking.

Vulnerable Page

# tee /var/www/html/cmd.php <<'EOF'
<?php
$cmd = $_GET['cmd'] ?? 'id';
system($cmd);
?>
EOF

---

5. Generating Attack Traffic from a Local Workstation

All attacks follow this path:

Local workstation → NAT Instance → Suricata → Private web server

---

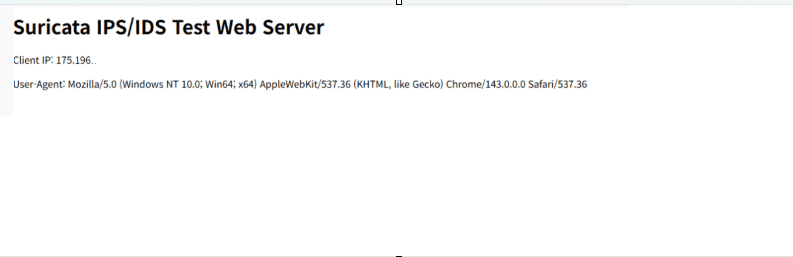

5.1 Normal Page Access

From a local browser:

http://<NAT_PUBLIC_IP>/

Confirm that the page loads normally.

---

5.2 SQL Injection Attack

Enter directly in the browser address bar:

http://<NAT_PUBLIC_IP>/sqli.php?id=1' UNION SELECT 1,version() --

---

5.3 XSS Attack

http://<NAT_PUBLIC_IP>/xss.php?q=<script>alert(1)</script>

---

5.4 Command Injection Attack

http://<NAT_PUBLIC_IP>/cmd.php?cmd=cat /etc/passwd

---

5.5 Malicious User-Agent Attack

macOS / Linux

# curl -A "sqlmap/1.7" http://<NAT_PUBLIC_IP>/

Windows PowerShell

PS C:\Users\User> curl.exe -A "sqlmap/1.7" http://<NAT_PUBLIC_IP>/

---

6. Suricata Alert Log Verification

Filter Suricata alert events:

# jq 'select(.event_type=="alert") | .alert.signature' /var/log/suricata/eve.json

All events should display signatures corresponding to the attacks above.

---

7. Switching from Alert to Drop

Up to this point, Suricata has been verified to detect attack traffic using alerts.
Now the same traffic is actively blocked by switching the rules to drop mode.

One important rule applies here:

The suricata.rules file must never be modified directly.

This file is overwritten every time suricata-update runs and is not intended for manual changes in either lab or production environments.

Instead, drop rules are defined using a local custom rule file (local.rules).

---

7.1 Rule Loading Structure Verification

Check where Suricata loads rule files from:

# grep -nE 'default-rule-path|rule-files' /etc/suricata/suricata.yaml

This indicates that:

• Suricata searches for rule files under /var/lib/suricata/rules
• Only files listed under rule-files are loaded

---

7.2 Create local.rules

# touch /var/lib/suricata/rules/local.rules
# chmod 644 /var/lib/suricata/rules/local.rules

At this stage, the file exists but is not yet loaded.

---

7.3 Enable local.rules in suricata.yaml

Explicitly instruct Suricata to load local.rules.

# vi /etc/suricata/suricata.yaml

Locate:

default-rule-path: /var/lib/suricata/rules
rule-files:

Configure the rule order so that:

• suricata.rules contains ET default rules (alert-focused, auto-updated)
• local.rules contains manually managed custom rules (including drop)

By placing local.rules after suricata.rules, local rules take precedence when conditions overlap.

---

7.4 Writing Drop Rules (local.rules)

Edit the file:

# vi /var/lib/suricata/rules/local.rules

SQL Injection Drop Rule Example

drop http any any -> $HOME_NET any (msg:"LOCAL DROP SQLi UNION SELECT"; content:"UNION SELECT"; http_uri; nocase; sid:9000003; rev:1;)

Malicious User-Agent (sqlmap) Drop Rule Example

drop http any any -> $HOME_NET any (msg:"LOCAL DROP sqlmap User-Agent"; content:"sqlmap"; http_user_agent; nocase; sid:9000002; rev:1;)

---

7.5 Rule Syntax Check

Always validate rule syntax before applying changes.

# suricata -T -c /etc/suricata/suricata.yaml -v

If you see the output below, it is working correctly.

Do not proceed if any errors are reported.

---

7.6 Restart Suricata

1.Stop the existing service
# systemctl stop suricata

2.Ensure all processes are terminated
# ps -ef | grep suricata | grep -v grep | awk '{print $2}' | xargs kill -9 2>/dev/null

3.Remove stale PID file (to prevent restart errors)
# rm -f /var/run/suricata.pid

4.Run in inline mode in the background
# suricata -c /etc/suricata/suricata.yaml -q 0 -D

5.ps -ef | grep suricata
# ps -ef | grep suricata

---

7.7 Verify Drop Behavior

Generate the same attacks again from the local workstation.

http://<NAT_PUBLIC_IP>/sqli.php?id=1' UNION SELECT 1,version() --

PS C:\Users\User> curl.exe -A "sqlmap/1.7" http://<NAT_PUBLIC_IP>/

Expected results:

• Page load fails in the browser
• Connection is reset or terminated

Check Suricata logs:

# jq 'select(.event_type=="alert") | .alert.signature' /var/log/suricata/eve.json

---

7.8 Summary

At this stage, the following has been confirmed:

• Attack traffic was observed at the alert stage
• The same rule conditions were switched to drop
• Actual network traffic was immediately blocked

This confirms that Suricata is operating correctly as an inline IPS, not merely as an IDS.

---

8. Final Summary

The key takeaway of this lab is simple:

Attack traffic originating externally passes through the NAT Instance and is actively blocked by Suricata operating as an inline IPS.

In the next section, this traffic will be filtered and visualized using an ELK stack installation and configuration guide.
