Zabbix for Kubernetes Monitoring (Agent2 7.0–7.4)

Version note (important): Zabbix publishes different Helm repos per version (7.4 / 7.2 / 7.0 LTS).
The examples below use 7.4. If your running Zabbix server/templates are on a different version, change <ZBX_VER> accordingly.

Repo pattern:
https://cdn.zabbix.com/zabbix/integrations/kubernetes-helm/<ZBX_VER>/

0) Prerequisites

• Kubernetes 1.23+ (recommend 1.24+) with kubectl and helm
• Zabbix Server or Proxy can reach the cluster over TCP 10050/10051
• Target namespace in this guide: monitoring

1) Add the repo (pick your version)

- Choose a Zabbix version to match your server/templates (7.4 / 7.2 / 7.0)
# export ZBX_VER=7.4

- Namespace
# kubectl create namespace monitoring 2>/dev/null || true

- Add/update the versioned Helm repo
# helm repo add zabbix-chart-${ZBX_VER} https://cdn.zabbix.com/zabbix/integrations/kubernetes-helm/${ZBX_VER}/

# helm repo update

2) Dump default values → edit a single file

- Save chart defaults to a local file
# helm show values zabbix-chart-${ZBX_VER}/zabbix-helm-chrt > zabbix_values.yaml

Open zabbix_values.yaml and adjust for your environment. Below is an example for 7.4, with proxy enabled and a single-node agent2.

⚠️ The hostnames/IPs shown are placeholders for documentation. Replace them with your real values.

1. Assign kube-state-metrics to a specific node

kubeStateMetrics.enabled deploys the kube-state-metrics component, which provides real-time Kubernetes object states such as Deployments, Pods, and Node conditions.
Add a nodeSelector under the kubeStateMetrics block.
If the target node has a taint, define tolerations accordingly.
If the block name is written as kubeStateMetrics, rename it to kube-state-metrics.

kube-state-metrics:
 enabled: true
 nodeSelector:
  kubernetes.io/hostname: example-node1

2. Deploy Zabbix Proxy to a specific node

zabbixProxy:
 enabled: true
 nodeSelector:
  kubernetes.io/hostname: example-node1
 tolerations: [] # add if the node has taints
 affinity: {} # optional fine-grained control

#Set the Zabbix proxy hostname using the following variable:
- name: ZBX_HOSTNAME
  value: example-proxy         — this will be the name you’ll later use when registering the proxy in the Zabbix Web UI.

#Since version 6.0, the variable ZBX_SERVER_PORT is no longer supported.
Instead, append a colon (:) followed by the port number to the end of the ZBX_SERVER_HOST value, as shown below:

- name: ZBX_SERVER_HOST
  value: "Zabbix server IP"

3. Restrict Zabbix Agent to a specific node (Agent runs as a DaemonSet)

If enabled: false, You can skip step 3) — “Stop any host-level agent2 on target nodes".
In this case, set it to true.

zabbixAgent:
 enabled: true
 nodeSelector:
  kubernetes.io/hostname: example-node1
 # Since it’s a DaemonSet, only one Pod will be deployed on the matching node (example-node1).

Comment out the default OS selector to prevent conflicts.

#nodeSelector:
# kubernetes.io/os: linux

4. Deploy Zabbix Java Gateway to a specific node

We’ll keep it false for now. If you enable it, configure as follows.

zabbixJavaGateway:
 enabled: true # set to false if not used
 nodeSelector:
  kubernetes.io/hostname: example-node1

5. Update Zabbix Server IP

Zabbix server host

name: ZBX_SERVER_HOST
 value: <actual server IP>

In most cases, modifying these configurations is sufficient for normal operation, but you can further adjust parameters such as resources, tolerations, or hostNetwork depending on your environment.

If needed, tune resources, tolerations, hostNetwork, etc., in the same file.
The point is: edit one file and deploy.

In the Zabbix Web UI, navigate to Administration → Proxies,
create a new proxy by specifying its name, and click Add.

Then, when linking the template to Prod K8S Cluster,
select that proxy in the Monitored by proxy option.

Among the templates, “Kubernetes cluster state by HTTP” cannot collect data if the Zabbix server is located outside the Kubernetes cluster,
so a Zabbix proxy is required

3) Stop any host-level agent2 on target nodes

# Stop/disable host-based zabbix-agent2
sudo systemctl stop zabbix-agent2
sudo systemctl disable zabbix-agent2

• Nodes without a Pod-based agent can keep their existing host agent2 (no conflict).
• Nodes with the Pod-based agent should have the host agent2 stopped to avoid port conflicts and duplicate collection.

4) Install with Helm

#helm install zabbix zabbix-chart-${ZBX_VER}/zabbix-helm-chrt \
  -n monitoring \
  --dependency-update \
  -f zabbix_values.yaml

- Check
# kubectl -n monitoring get pods -o wide

- After installing Zabbix via Helm, update the values.yaml file and redeploy.
# helm upgrade --install zabbix zabbix-chart-${ZBX_VER}/zabbix-helm-chrt   -n monitoring   -f zabbix_values.yaml

5) ServiceAccount token (K8s 1.24+ recommended)

# Recommended: print a token immediately (K8s 1.24+)
kubectl -n monitoring create token zabbix-service-account

# Legacy method: extract from a Secret
kubectl -n monitoring get secret | grep zabbix-service-account
kubectl -n monitoring get secret zabbix-service-account -o jsonpath='{.data.token}' | base64 -d; echo

6) Apply Zabbix templates (conflict-avoidance principle)

• Host K8S Cluster: Attach “Kubernetes cluster state by HTTP” and any other remaining templates
• Host K8S NODE : Kubernetes Kubelet by HTTP / Kubernetes Nodes by HTTP Connection

Common macros (typical):

• {$KUBE.API.TOKEN} = (the SA token issued above)
• {$KUBE.KUBELET.URL} = https://<node-ip>:10250
• {$KUBE.API.URL} = https://<apiserver ip>:6443
• Depending on the situation, you can also add: {$KUBE.API.SERVER.URL} = https://<apiserver ip>:6443/metrics
• It’s also fine to set the kube.kubelet.url address to the master node’s IP.

7) Zabbix UI example inputs

• Example hostnames: Prod K8S Cluster / Prod K8S NODE
• Example IPs: api server ip – 198.51.100.24 (master node) / kubelet ip – 198.51.100.25 (Node IP where the Zabbix pod is deployed)

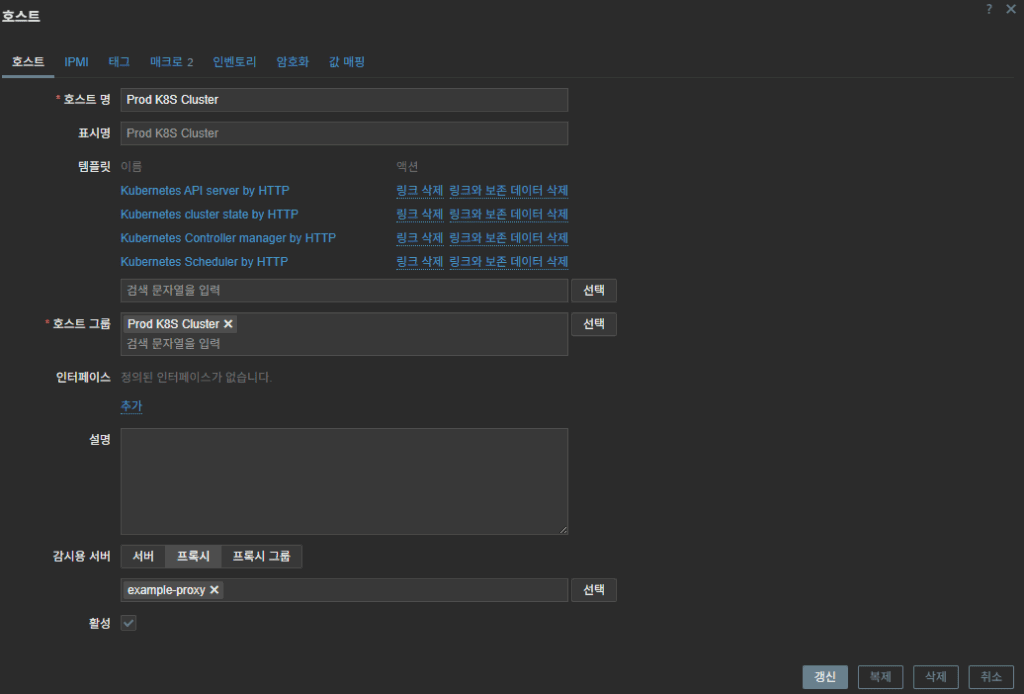

1. Cluster host templates → cluster state / api server / controller manager / scheduler

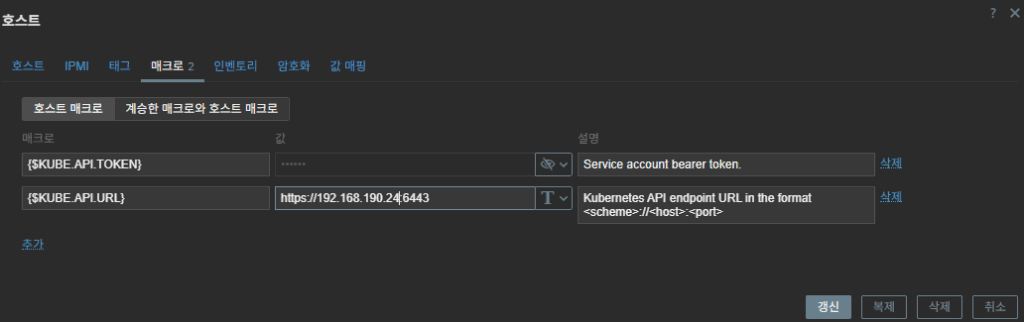

2. Cluster host → set macros

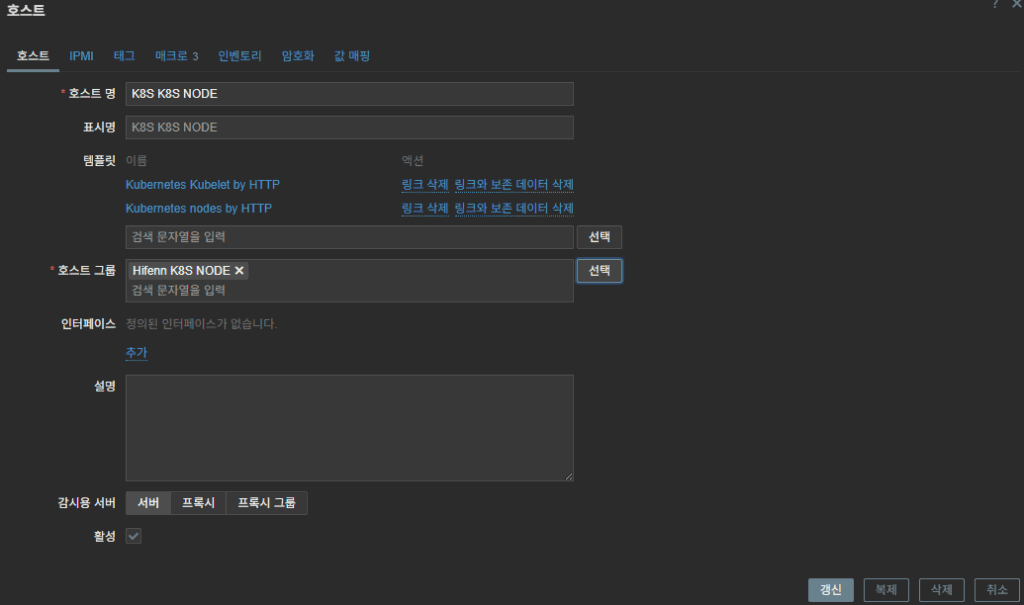

3. Node host(s) → node/kubelet templates

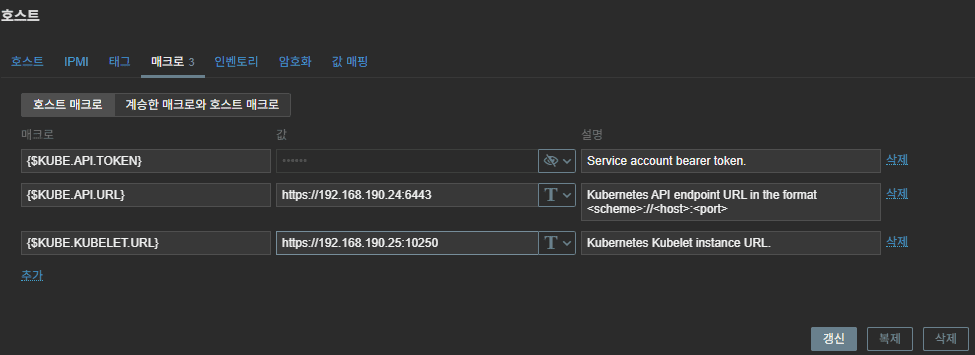

4. Node host(s) → set macros

8) Checklist

• On deployed nodes, host agent2 is fully stopped
• Server ↔ Agent2 traffic allowed (10050/10051 as appropriate)
• {$KUBE.API.TOKEN} is valid and has get/list/watch permissions
• {$KUBE.KUBELET.URL} (nodeIP:10250) is reachable
• Separate Host A (cluster) and Host B (nodes); keep this principle when adding more templates
• Repo/chart/template versions match your Zabbix server version

9) FAQ

• Why place the Zabbix server outside the Kubernetes cluster?
  On-prem, it’s not a hard requirement—but because the cluster itself is the monitoring target, running the Zabbix server outside the target cluster is generally cleaner. You can still monitor the cluster’s control plane, nodes, and workloads without circular dependencies, and you avoid losing your monitoring backend if the cluster has a control-plane outage.
